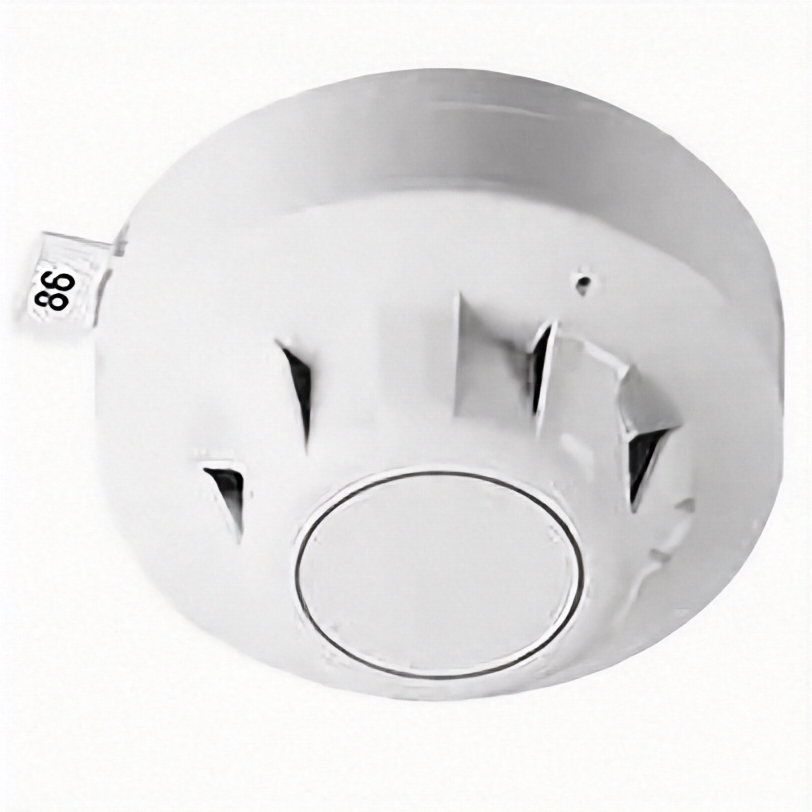

Addressable Optical Smoke Detector Apollo XP95

Addressable Optical Smoke Detector Apollo XP95

€26,09 EUR
€26,09 EUR
Sale Sold out
Tax included. Shipping calculated at checkout.
General
Warranty 10 year
Fire detection type Slow burning, smouldering fires
Mechanical parameters
Colour White
Sensor Horizontal optical bench housing infra-red emitter and sensor, arranged radially to detect forward scattered light.
Weight 105g
Material Polycarbonate
Terminal material Nickel plated stainless steel
Product length 42mm
Product diameter 100mm
Detection principle Photo-electric light scattering.
Product length 1.65in
Product diameter 3.94in
Standards
Standard EN 54-7
Performance
Analogue value (nominal) 25
Analogue value (- tolerance) 7
Analogue value (+ tolerance) 7
Analogue value 25 +7/-7
Analogue value of alarm level 55
Chamber type Chevron
Electrical specification
Protocol voltage 5 to 9V peak to peak
Protocol voltage (max) 9V
Protocol voltage (min) 5V
Start up current 1mA
Maximum start up time 4 seconds
Alarm state indicator Red
Fault state indicator Off
Quiescent current 340μA
Alarm voltage (max) 28V dc
Alarm voltage (min) 17V dc
Alarm voltage (Vmin-Vmax) 17 to 28V dc
Terminal functions L2 +L2 Loop in & out positive, double terminal
Terminal functions L1 in -L1 in Loop in & out, double terminal
Terminal functions +R +R Remote indicator positive connection
Environmental influences
Humidity resistance (max) 95% RH
Humidity resistance (min) 0% RH
Humidity resistance conditions no condensation or icing
Humidity resistance 0% to 95% (no condensation or icing)
Operating temperature -20 to 60°C
Operating temperature (max) 60°C
Operating temperature (min) -20°C
Operating temperature (max) 80°C
Operating temperature (min) -30°C
Operating temperature -30 to 80°C
Wind speed influence None
