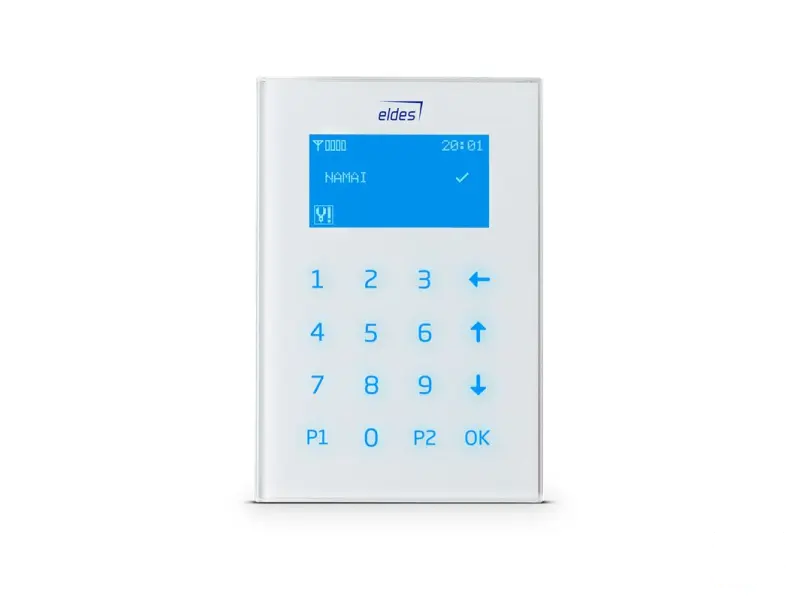

EKB2W Touch Keypad for ESIM384 and ESIM484 Alarm Panels, White

Main features of the EKB2 keypad:

• touch-sensitive surface
• graphic 128x64 LCD display
• LED-backlit keys
• 1 integrated zone
• easy-to-understand control commands
• audible signal when performing actions with keys
• tamper switch

The keypad supports multiple password levels - user and administrator. Using the administrator password, you will be able to perform system configuration on the keypad, while the user password will only allow you to arm/disarm the system. Up to 4 keypads can be connected to the ESIM364 system at one time.

Technical specifications

• Power supply:  12-14V DC 150mA max
• Maximum keypad connection cable length: 100m
• Dimensions: 133x89x19mm
• Operating temperature range: 0...+55°C
• Number of integrated zones: 1
