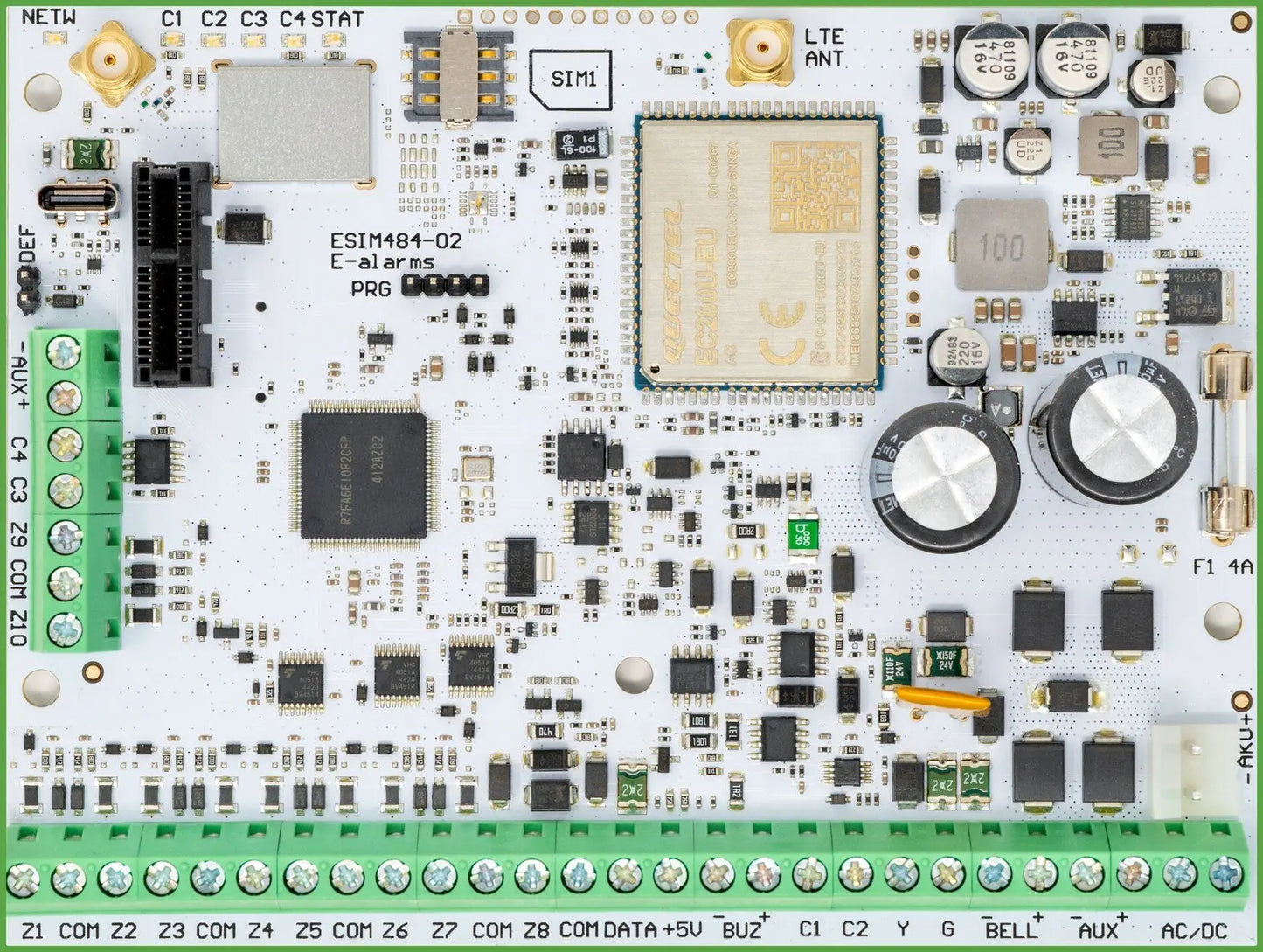

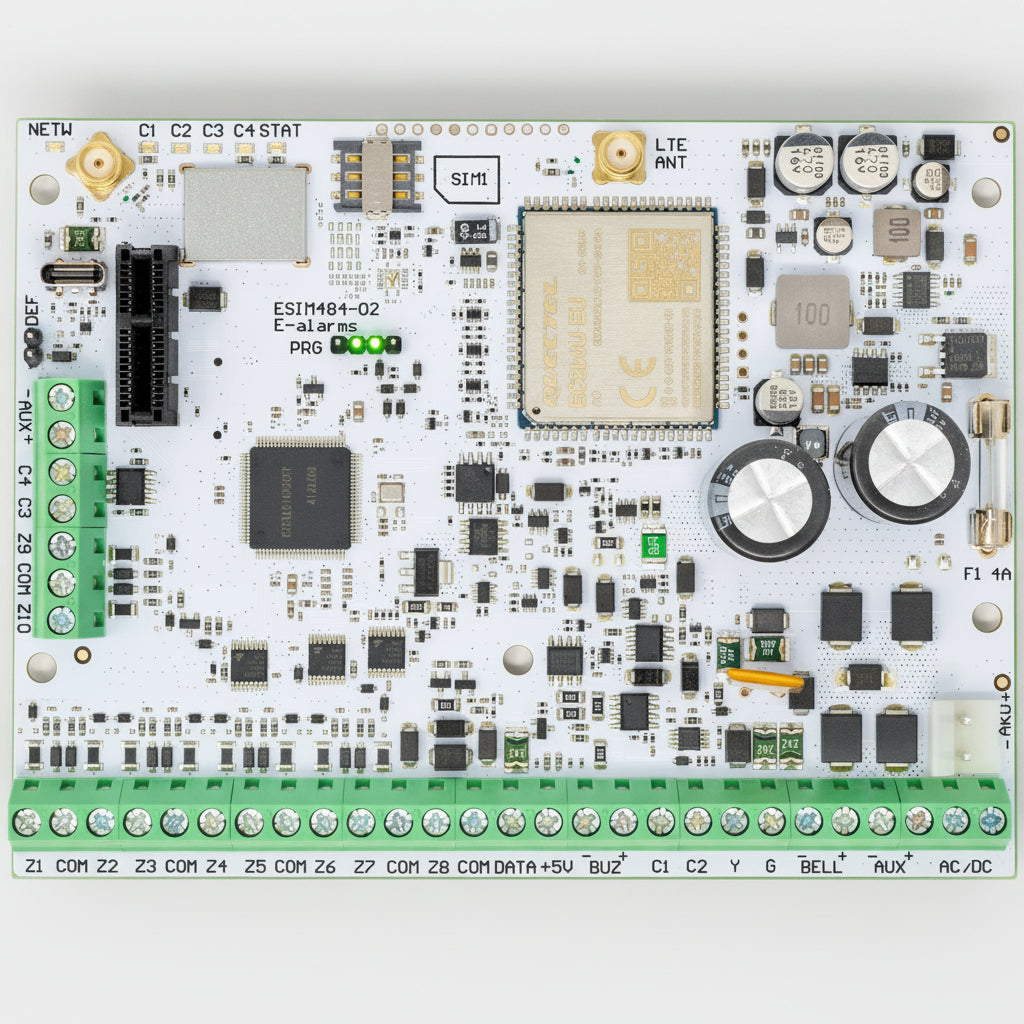

GSM Control Panel Eldes ESIM484 10 zones/ATZ20 zones
GSM Control Panel Eldes ESIM484 10 zones/ATZ20 zones
Regular price
€200,69 EUR
Regular price
Sale price
€200,69 EUR
Unit price
/
per
Tax included.
Shipping calculated at checkout.
Couldn't load pickup availability
- Main power supply16-24V 50/60 Hz ~3A max / 18-24V 3A max
- Recommended backup battery capacity12V; 1.3-7Ah
- Backup battery charging timeUp to 30 hours for 7Ah battery
- GSM modem frequency850/900/1800/19, LTE-FDD: B1/3/5/7/8/20/28, LTE-TDD: B38/40/41, GSM: B2/3/5/8
- SIM card typeNano-SIM
- Number of wired PGM points4
- Number of wired zones on the board10 (in ATZ mode: 20)
- Number of zones using 2xEPGM116+16
- Number of PGM outputs using 2xEPGM12+2
- Maximum supported number of wireless zones124
- Maximum supported number of wireless devices64
- Total maximum supported number of zones144
- Supported third-party smoke detectorsTwo-wire, four-wire
- Quantity of supported third-party two-wire smoke detectorsUp to 8
- Maximum number of temperature sensors8
- Wireless communication frequencyISM868
- Wireless communication rangeUp to 3000 m (open area)
- CommunicationSMS, LTE, Ethernet via Elan3 - Alarm
- Supported communication protocolAdemco Contact ID, EGR100, Kronos, SIA IP
- Dimensions140x100x18mm
- Operating temperature range-20…+55°C
- Air humidity0-90% RH @ 0… +40°C (0-90% RH @ +32… +104°F)
