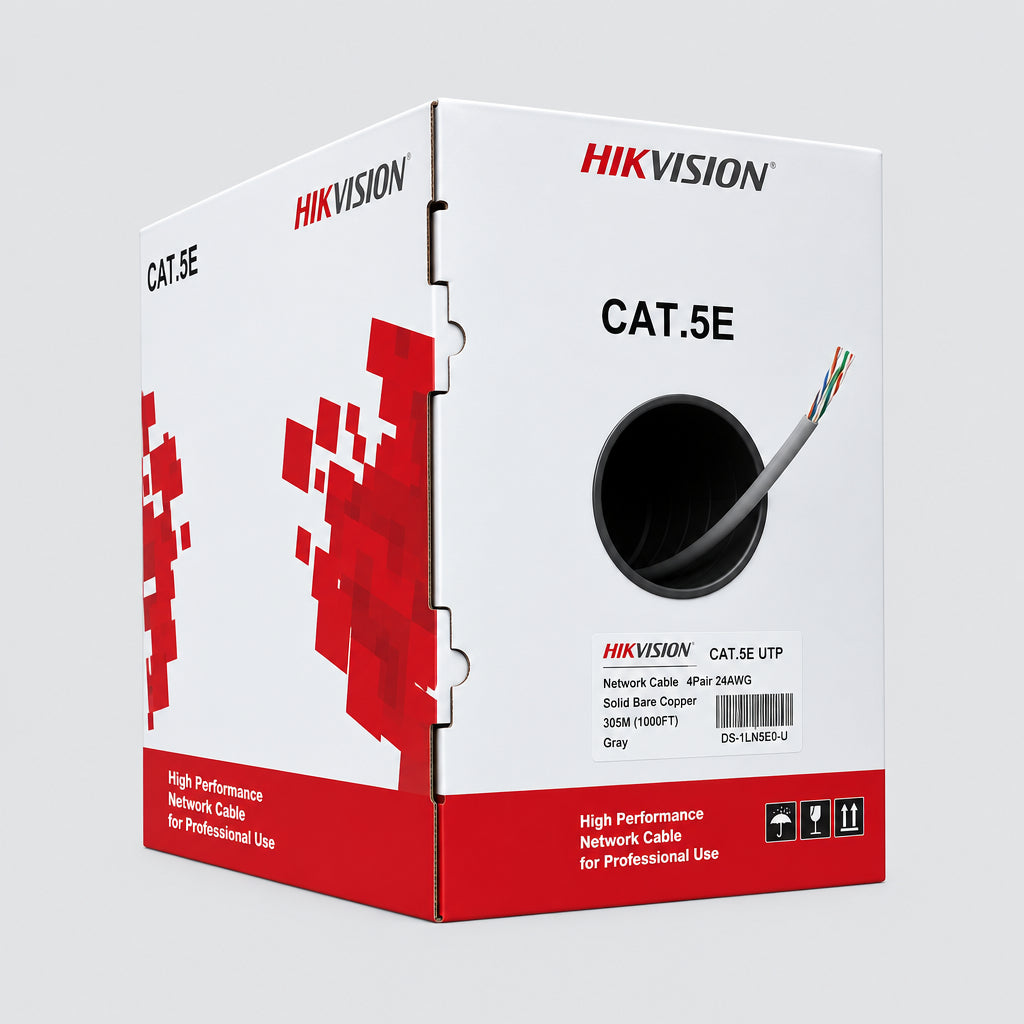

Cable communication UTP 5E outdoor Hikvision DS-1LN5EO-UU/E
Cable communication UTP 5E outdoor Hikvision DS-1LN5EO-UU/E
Regular price
€0,42 EUR
Regular price
Sale price
€0,42 EUR
Unit price
/
per
Tax included.
Shipping calculated at checkout.
Couldn't load pickup availability
- Core colors: 1 White- Blue /Blue 2 White-Orange /Orange,3 White-Green /Green 4 White- Brown /Brown,
- Package length: 305±0.5m
- Sheath specifications: Before Aging Tensile Strength (Mpa) ≥10, Elongation(%) ≥300,Aging Period (℃×hrs) 100℃×24h×10d,After Aging Tensile Strength(Mpa) ≥12.5, Elongation(%) ≥125,Cold bend(-20±2℃×4h) 8×Cable O.D.，No visible cracks,
- Electrical characteristics (20℃)1.0-100.0MHz Impedance ((Ω) 100±15,1.0-100.0MHz Delay Skew (ns/100m) ≤552,DC Resistance (Ω/100m) max 9.5,DC Conductor Resistance Unbalance (%) max 2.0,
- Material: SOLID-Bare Copper,Content 99.99%,
- Nom.O.D.(mm)0.500±0.001
- Material: HDPE
- Diameter: 0.88±0.03mm
- Thickness: 0.55±0.03 mm
- Outer O.D.5.0±0.3mm
- Surface: Clean,Frap,Satiation
- Material: PE
- Color: Black
