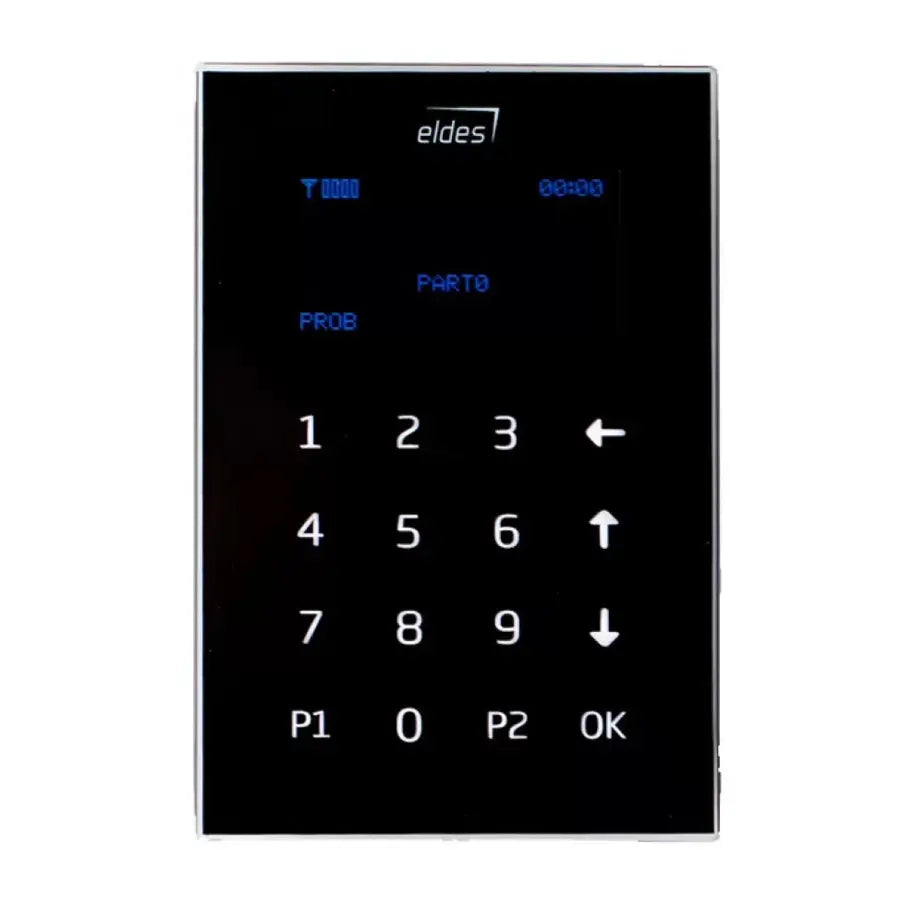

EKB2 control panel for ESIM384 central unit, touchscreen, black

Main features of the EKB2 keyboard:

• touch-sensitive surface
• graphic 128x64 LCD display
• LED-backlit keys
• 1 integrated zone
• easy-to-understand control commands
• audible signal for key actions
• tamper switch

The keypad supports multiple password levels - user and administrator. With the administrator password, you can configure the system, while with the user password, you can only enable/disable system security. Up to 4 keypads can be connected to the ESIM384 system simultaneously.

Technical specifications

• Power supply: 12-14V DC 150mA max
• Maximum keypad connection cable length: 100m
• Dimensions: 133x89x19mm
• Operating temperature range: 0...+55°C
• Number of integrated zones: 1
